mongodb replica sharding 实战

环境说明

三台机器(centos6.4)

  • host1 192.168.1.201
  • host2 192.168.1.202
  • host3 192.168.1.203

mongdb版本

2.4.0

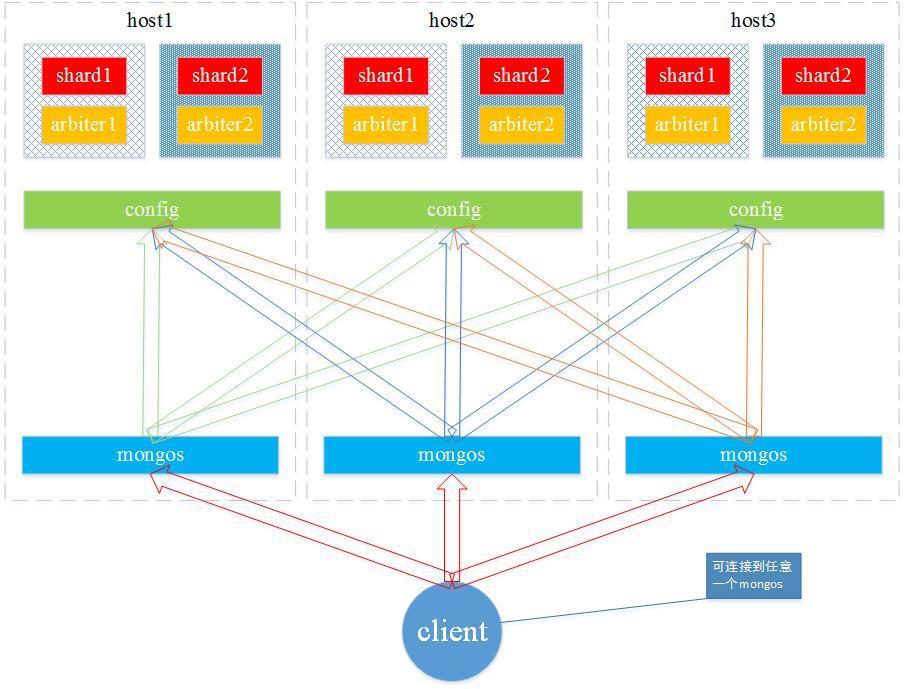

服务规划


  • shard1 28017：shard1的数据服务
  • shard2 28018：shard2的数据服务
  • config 20000：存储分片集群的的元数据，其中包括在每个mongod实例的基本信息和块信息
  • arbiter1 28031：shard1的仲裁节点
  • arbiter2 28032：shard2的仲裁节点
  • mongos 28885：数据和请求分发的中心，使单一的mongod实例组成互相关联的集群

仲裁节点是一种特殊的节点，它本身不存储数据，主要的作用是决定哪一个备用节点在主节点挂掉之后提升为主节点。

配置文件

host1

数据节点

shard11表示分片一的第一个节点
shard21表示分片二的第一个节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard11
cat > /home/ayou/mongodb/shard11.conf <<EOF
shardsvr=true
replSet=shard1
port=28017
dbpath=/home/ayou/mongodb/shard11
oplogSize=2048
logpath=/home/ayou/mongodb/shard11.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard21
cat > /home/ayou/mongodb/shard21.conf <<EOF
shardsvr=true
replSet=shard2
port=28018
dbpath=/home/ayou/mongodb/shard21
oplogSize=2048
logpath=/home/ayou/mongodb/shard21.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

配置节点

1
2
3
4
5
6
7
8
9
10
mkdir -p /home/ayou/mongodb/config
cat > /home/ayou/mongodb/config1.conf <<EOF
configsvr=true
dbpath=/home/ayou/mongodb/config/
port=20000
logpath=/home/ayou/mongodb/config1.log
logappend=true
fork=true
nojournal=true
EOF

表决节点

arbiter1表示为分片一的仲裁节点
arbiter2表示为分片二的仲裁节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter1
cat > /home/ayou/mongodb/arbiter1.conf <<EOF
shardsvr=true
replSet=shard1
port=28031
dbpath=/home/ayou/mongodb/arbiter1
oplogSize=100
logpath=/home/ayou/mongodb/arbiter1.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter2
cat > /home/ayou/mongodb/arbiter2.conf <<EOF
shardsvr=true
replSet=shard2
port=28032
dbpath=/home/ayou/mongodb/arbiter2
oplogSize=100
logpath=/home/ayou/mongodb/arbiter2.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

路由节点

1
2
3
4
5
6
7
8
9
mkdir -p /home/ayou/mongodb/mongos1
cat > /home/ayou/mongodb/mongos1.conf <<EOF
configdb=host1:20000,host2:20000,host3:20000
port=28885
chunkSize=100
logpath=/home/ayou/mongodb/mongos1.log
logappend=true
fork=true
EOF

host2

数据节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard12
cat > /home/ayou/mongodb/shard12.conf <<EOF
shardsvr=true
replSet=shard1
port=28017
dbpath=/home/ayou/mongodb/shard12
oplogSize=2048
logpath=/home/ayou/mongodb/shard12.log
logappend=true
fork=true
rest=true
nojournal=true
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard22
cat > /home/ayou/mongodb/shard22.conf <<EOF
shardsvr=true
replSet=shard2
port=28018
dbpath=/home/ayou/mongodb/shard22
oplogSize=2048
logpath=/home/ayou/mongodb/shard22.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

配置节点

1
2
3
4
5
6
7
8
9
mkdir -p /home/ayou/mongodb/config
cat > /home/ayou/mongodb/config2.conf <<EOF
configsvr=true
dbpath=/home/ayou/mongodb/config/
port=20000
logpath=/home/ayou/mongodb/config2.log
logappend=true
fork=true
EOF

表决节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter1
cat > /home/ayou/mongodb/arbiter1.conf <<EOF
shardsvr=true
replSet=shard1
port=28031
dbpath=/home/ayou/mongodb/arbiter1
oplogSize=100
logpath=/home/ayou/mongodb/arbiter1.log
logappend=true
fork=true
rest=true
nojournal=true
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter2
cat > /home/ayou/mongodb/arbiter2.conf <<EOF
shardsvr=true
replSet=shard2
port=28032
dbpath=/home/ayou/mongodb/arbiter2
oplogSize=100
logpath=/home/ayou/mongodb/arbiter2.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

路由节点

1
2
3
4
5
6
7
8
9
mkdir -p /home/ayou/mongodb/mongos2
cat > /home/ayou/mongodb/mongos2.conf <<EOF
configdb=host1:20000,host2:20000,host3:20000
port=28885
chunkSize=100
logpath=/home/ayou/mongodb/mongos2.log
logappend=true
fork=true
EOF

host3

数据节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard13
cat > /home/ayou/mongodb/shard13.conf <<EOF
shardsvr=true
replSet=shard1
port=28017
dbpath=/home/ayou/mongodb/shard13
oplogSize=2048
logpath=/home/ayou/mongodb/shard13.log
logappend=true
fork=true
rest=true
nojournal=true
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/shard23
cat > /home/ayou/mongodb/shard23.conf <<EOF
shardsvr=true
replSet=shard2
port=28018
dbpath=/home/ayou/mongodb/shard23
oplogSize=2048
logpath=/home/ayou/mongodb/shard23.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

配置节点

1
2
3
4
5
6
7
8
9
mkdir -p /home/ayou/mongodb/config
cat > /home/ayou/mongodb/config3.conf <<EOF
configsvr=true
dbpath=/home/ayou/mongodb/config/
port=20000
logpath=/home/ayou/mongodb/config3.log
logappend=true
fork=true
EOF

表决节点

1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter1
cat > /home/ayou/mongodb/arbiter1.conf <<EOF
shardsvr=true
replSet=shard1
port=28031
dbpath=/home/ayou/mongodb/arbiter1
oplogSize=100
logpath=/home/ayou/mongodb/arbiter1.log
logappend=true
fork=true
rest=true
nojournal=true
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
mkdir -p /home/ayou/mongodb/arbiter2
cat > /home/ayou/mongodb/arbiter2.conf <<EOF
shardsvr=true
replSet=shard2
port=28032
dbpath=/home/ayou/mongodb/arbiter2
oplogSize=100
logpath=/home/ayou/mongodb/arbiter2.log
logappend=true
fork=true
rest=true
nojournal=true
EOF

路由节点

1
2
3
4
5
6
7
8
9
mkdir -p /home/ayou/mongodb/mongos3
cat > /home/ayou/mongodb/mongos3.conf <<EOF
configdb=host1:20000,host2:20000,host3:20000
port=28885
chunkSize=100
logpath=/home/ayou/mongodb/mongos3.log
logappend=true
fork=true
EOF

启动服务

  • mongos服务可以只启动一台，本文在host3上启动
  • 如果启动不了，可以尝试同步时间/usr/sbin/ntpdate * *表示需要与之同步的机器名

host1

1
2
3
4
5
6
mongod --config /home/ayou/mongodb/shard11.conf
mongod --config /home/ayou/mongodb/shard21.conf
mongod --config /home/ayou/mongodb/arbiter1.conf
mongod --config /home/ayou/mongodb/arbiter2.conf
mongod --config /home/ayou/mongodb/config1.conf
mongos --config /home/ayou/mongodb/mongos1.conf

host2

1
2
3
4
5
6
mongod --config /home/ayou/mongodb/shard12.conf
mongod --config /home/ayou/mongodb/shard22.conf
mongod --config /home/ayou/mongodb/arbiter1.conf
mongod --config /home/ayou/mongodb/arbiter2.conf
mongod --config /home/ayou/mongodb/config2.conf
mongos --config /home/ayou/mongodb/mongos2.conf

host3

1
2
3
4
5
6
mongod --config /home/ayou/mongodb/shard13.conf
mongod --config /home/ayou/mongodb/shard23.conf
mongod --config /home/ayou/mongodb/arbiter1.conf
mongod --config /home/ayou/mongodb/arbiter2.conf
mongod --config /home/ayou/mongodb/config3.conf
mongos --config /home/ayou/mongodb/mongos3.conf

启动路由

任选一台机器，执行如下命令

1
2
3
4
5
6
7
8
9
10
cat > /home/ayou/mongodb/mongos.conf <<EOF
configdb=host1:20000,host2:20000,host3:20000
port=41000
chunkSize=100
logpath=/home/ayou/mongodb/mongos.log
logappend=true
fork=true
EOF

mongos --config /home/ayou/mongodb/mongos.conf

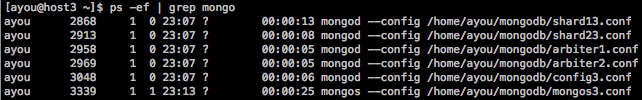

查看运行状态




配置分片

  • 可以在任意台机器上进行如下操作
  • 可能需要关闭防火墙
1
2
3
4
mongo host1:28017/admin

config = {_id:'shard1', members: [{_id: 0, host: "host1:28017"},{_id: 1, host:"host2:28017"},{ _id : 2,host:"host3:28017",slaveDelay :7200 ,priority:0},{_id: 3, host: 'host1:28031', arbiterOnly : true},{_id: 4,host: 'host2:28031', arbiterOnly : true},{_id: 5, host: 'host3:28031',arbiterOnly : true}]};
rs.initiate(config);
1
2
3
4
mongo host2:28018/admin

config = {_id:'shard2', members: [{_id: 0, host: "host1:28018"},{_id: 1, host:"host2:28018"},{ _id : 2,host:"host3:28018",slaveDelay :7200 ,priority:0},{_id: 3, host: 'host1:28032', arbiterOnly : true},{_id: 4,host: 'host2:28032', arbiterOnly : true},{_id: 5, host: 'host3:28032',arbiterOnly : true}]};
rs.initiate(config);

添加分片

任选一台机器

1
2
3
4
5
6
7
8
mongo host3:28885/admin
db.runCommand({"addshard" : "shard1/host1:28017,host2:28017"})

db.runCommand({"addshard" : "shard2/host1:28018,host2:28018"})

db.runCommand( { "enablesharding" : "test-shard"})

db.runCommand( { shardcollection : "test-shard.test",key : {_id: 1} } )

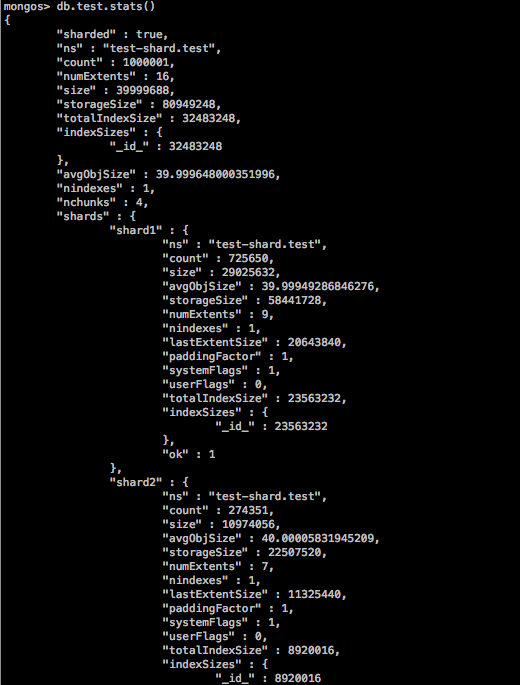

测试

往test-shard.test中插入大量数据

1
for(var i=0;i<1000000;i++) db.test.insert({name:"no"+i})

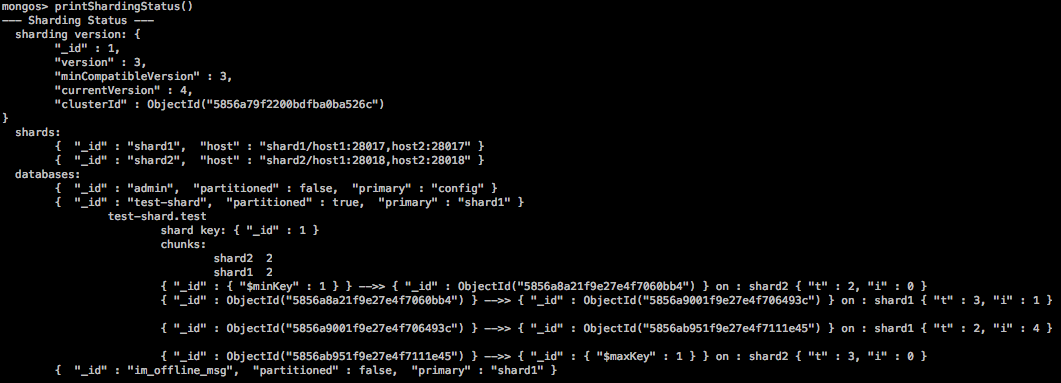

查看分片状态
