从零实现 React v18，但 WASM 版 - [6] 实现 Commit 流程

模仿 big-react，使用 Rust 和 WebAssembly，从零实现 React v18 的核心功能。深入理解 React 源码的同时，还锻炼了 Rust 的技能，简直赢麻了！

代码地址：https://github.com/ParadeTo/big-react-wasm

本文对应 tag：v6

Based on big-react，I am going to implement React v18 core features from scratch using WASM and Rust.

Code Repository：https://github.com/ParadeTo/big-react-wasm

The tag related to this article：v6

上篇文章已经实现了 React 一次更新过程的 Render 流程，本篇我们来实现最后一步，即 Commit。

The previous article has already implemented the render process. In this article, we will implement the final step, which is the commit phase.

首先，在 work_loop 中加入 commit 步骤：

Firstly, add the commit step to the work_loop function:

fn perform_sync_work_on_root(&mut self, root: Rc<RefCell<FiberRootNode>>) {
  ...

  root.clone().borrow_mut().finished_work = finished_work;
  self.commit_root(root);
}

这里的 finished_work 就是根 FiberNode。

The finished_work here refers to the root FiberNode.

完整的 Commit 流程包括 commitBeforeMutaionEffects，commitMutationEffects，commitLayoutEffects 等步骤。这里简单起见，先只实现 commitMutationEffects，
当然可以先判断根节点或者其子节点是否有副作用，有副作用才需要执行：

The complete commit process includes steps like commitBeforeMutationEffects, commitMutationEffects, commitLayoutEffects, and so on. For simplicity, let’s start by implementing only the commitMutationEffects step. Of course, we can first check if the root node or its child nodes have any side effects ahead:

fn commit_root(&self, root: Rc<RefCell<FiberRootNode>>) {
    ...
    if subtree_has_effect || root_has_effect {
        commit_work.commit_mutation_effects(finished_work.clone());
        cloned.borrow_mut().current = finished_work.clone();
    } else {
        cloned.borrow_mut().current = finished_work.clone();
    }
}

commit_mutation_effects 中会采取深度优先的方式遍历 Fiber Tree，比如下面这个例子的遍历顺序为 BEFCDA：

In the commit_mutation_effects step, the Fiber tree is traversed in depth-first way. For example, the traversal order for the following example is BEFCDA:

同时还会根据 subtree_flags 的值来决定是否继续遍历子树，比如下面这个例子会跳过 EF，最后的顺序为 BCDA：

And the traversal of the subtree is determined based on the value of subtree_flags. For example, in the following example, EF is skipped, and the final order is BCDA:

而 subtree_flags 是在 CompleteWork 中的 bubble_properties 中更新的，即每完成一个节点，就会合并他所有子节点的 flags：

The subtree_flags are updated in the bubble_properties of CompleteWork. This means that after completing a node, the flags of all its child nodes are merged.

fn bubble_properties(&self, complete_work: Rc<RefCell<FiberNode>>) {
    let mut subtree_flags = Flags::NoFlags;
    {
        let mut child = complete_work.clone().borrow().child.clone();
        while child.is_some() {
            let child_rc = child.clone().unwrap().clone();
            {
                let child_borrowed = child_rc.borrow();
                subtree_flags |= child_borrowed.subtree_flags.clone();
                subtree_flags |= child_borrowed.flags.clone();
            }
            {
                child_rc.borrow_mut()._return = Some(complete_work.clone());
            }
            child = child_rc.borrow().sibling.clone();
        }
    }

    complete_work.clone().borrow_mut().subtree_flags |= subtree_flags.clone();
}

每个节点根据他本身的 flags 来提交不同的操作，这里暂时只处理 Placement：

Each node submits different operations based on its own flags. For now, we will only handle the Placement operation.

fn commit_mutation_effects_on_fiber(&self, finished_work: Rc<RefCell<FiberNode>>) {
    let flags = finished_work.clone().borrow().flags.clone();
    if flags.contains(Flags::Placement) {
        self.commit_placement(finished_work.clone());
        finished_work.clone().borrow_mut().flags -= Flags::Placement
    }
}

commit_placement 中会先获取离当前处理的 FiberNode 最近的 HostComponent 或 HostRoot 作为其所要插入的目标父节点：

In commit_placement, the nearest HostComponent or HostRoot to the currently processed FiberNode is first obtained as the target parent node for insertion.

fn commit_placement(&self, finished_work: Rc<RefCell<FiberNode>>) {
    let host_parent = self.get_host_parent(finished_work.clone());
    if host_parent.is_none() {
        return;
    }
    let parent_state_node = FiberNode::derive_state_node(host_parent.unwrap());

    if parent_state_node.is_some() {
        self.append_placement_node_into_container(
            finished_work.clone(),
            parent_state_node.unwrap(),
        );
    }
}

fn get_host_parent(&self, fiber: Rc<RefCell<FiberNode>>) -> Option<Rc<RefCell<FiberNode>>> {
    let mut parent = fiber.clone().borrow()._return.clone();
    while parent.is_some() {
        let p = parent.clone().unwrap();
        let parent_tag = p.borrow().tag.clone();
        if parent_tag == WorkTag::HostComponent || parent_tag == WorkTag::HostRoot {
            return Some(p);
        }
        parent = p.borrow()._return.clone();
    }

    None
}

最后执行插入操作是会判断当前 FiberNode 节点类型是不是 HostComponent 或 HostText，如果不是会尝试插入其所有子节点：

In the commit_placement function, the nearest HostComponent or HostRoot to the currently processed FiberNode is obtained as the target parent node where it will be inserted.

fn append_placement_node_into_container(
    &self,
    fiber: Rc<RefCell<FiberNode>>,
    parent: Rc<dyn Any>,
) {
    let fiber = fiber.clone();
    let tag = fiber.borrow().tag.clone();
    if tag == WorkTag::HostComponent || tag == WorkTag::HostText {
        let state_node = fiber.clone().borrow().state_node.clone().unwrap();
        self.host_config.append_child_to_container(
            self.get_element_from_state_node(state_node),
            parent.clone(),
        );
        return;
    }

    let child = fiber.borrow().child.clone();
    if child.is_some() {
        self.append_placement_node_into_container(child.clone().unwrap(), parent.clone());
        let mut sibling = child.unwrap().clone().borrow().sibling.clone();
        while sibling.is_some() {
            self.append_placement_node_into_container(sibling.clone().unwrap(), parent.clone());
            sibling = sibling.clone().unwrap().clone().borrow().sibling.clone();
        }
    }
}

本次详细代码变更可以参考这里。

You can refer to this link for detailed code changes in this update.

到此，我们已经复刻出了 big react v2 版本，即可以实现单节点的首次渲染，支持 HostComponent 和 HostText。

So far, we have replicated the big react v2 version, which can perform initial rendering of a single node and supports HostComponent and HostText.

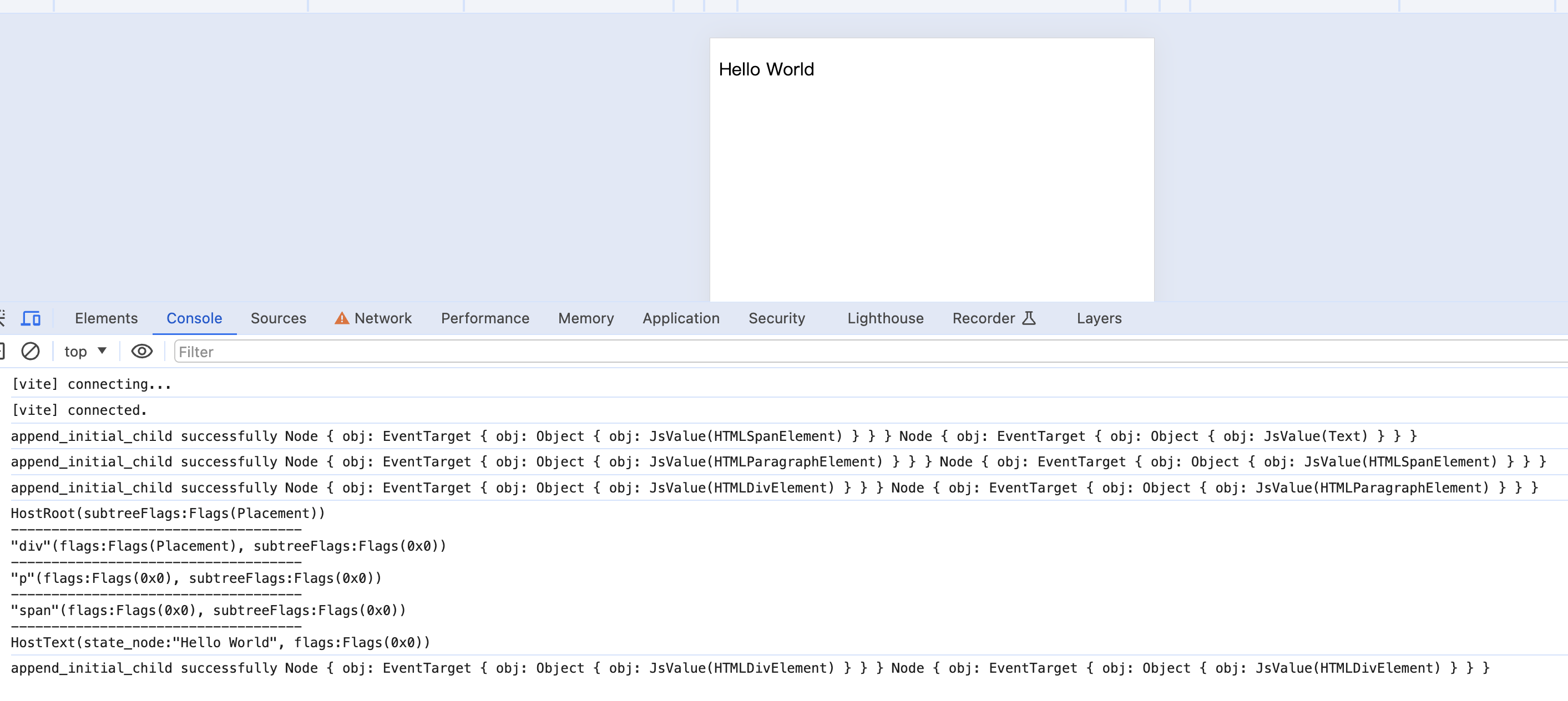

重新构建和安装依赖，还是运行上一篇的例子，最终效果如下图：

After rebuilding and installing dependencies, running the example from the previous article, the final result will look like the following image:

从结果中还可以看到，有些插入操作是在 Commit 阶段这前就完成了，具体到代码中，是在 complete_work 中：

From the result, we can also see that some insertion operations are completed before the Commit phase. Specifically in the code, this is done in the complete_work function:

...
WorkTag::HostComponent => {
  let instance = self.host_config.create_instance(
      work_in_progress
          .clone()
          .borrow()
          ._type
          .clone()
          .unwrap()
          .clone()
          .as_string()
          .unwrap(),
  );
  self.append_all_children(instance.clone(), work_in_progress.clone());
  work_in_progress.clone().borrow_mut().state_node =
      Some(Rc::new(StateNode::Element(instance.clone())));
  self.bubble_properties(work_in_progress.clone());
  None
}
...

这样在 Commit 阶段的时候，只需要一次性插入一颗离屏的 DOM 树就好了，也算是一个小优化了。

This way, during the Commit phase, we only need to insert an off-screen DOM tree once, which can be considered a small optimization.
