从零实现 React v18，但 WASM 版 - [7] 支持 FunctionComponent 类型

模仿 big-react，使用 Rust 和 WebAssembly，从零实现 React v18 的核心功能。深入理解 React 源码的同时，还锻炼了 Rust 的技能，简直赢麻了！

代码地址：https://github.com/ParadeTo/big-react-wasm

本文对应 tag：v7

Based on big-react，I am going to implement React v18 core features from scratch using WASM and Rust.

Code Repository：https://github.com/ParadeTo/big-react-wasm

The tag related to this article：v7

上篇文章已经实现了 HostComponent 和 HostText 类型的首次渲染，这篇文章我们把 FunctionComponent 也加上，不过暂时不支持 Hooks。

The previous article has already implemented the initial rendering for HostComponent and HostText types. In this article, we will add support for FunctionComponent, although Hooks are not supported for now.

按照流程，首先是要在 begin_work 中增加对 FunctionComponent 的分支处理：

Following the process, the first step is to add a branch for handling FunctionComponent in begin_work:

pub fn begin_work(work_in_progress: Rc<RefCell<FiberNode>>) -> Option<Rc<RefCell<FiberNode>> {
  let tag = work_in_progress.clone().borrow().tag.clone();
  return match tag {
      WorkTag::FunctionComponent => update_function_component(work_in_progress.clone()),
      ...
  };
}

fn update_function_component(
    work_in_progress: Rc<RefCell<FiberNode>>,
) -> Option<Rc<RefCell<FiberNode>>> {
    let fiber_hooks = &mut FiberHooks::new();
    let next_children = Rc::new(fiber_hooks.render_with_hooks(work_in_progress.clone())?);
    reconcile_children(work_in_progress.clone(), Some(next_children));
    work_in_progress.clone().borrow().child.clone()
}

从代码中可以看到，我们需要新建一个 FiberHooks 的 struct，并实现 render_with_hooks 方法，目前该方法的核心就是从 FiberNode 中提取 _type 和 pending_props，并调用 _type 指向的函数（参数为 pending_props 所指向的对象），得到 children：

From the code, we can see that we need to create a new struct called FiberHooks and implement the render_with_hooks method. Currently, the core of this method is to extract _type and pending_props from the FiberNode and call the function pointed to by _type (with pending_props as the argument) to obtain children:

impl FiberHooks {
    ...
    pub fn render_with_hooks(&mut self, work_in_progress: Rc<RefCell<FiberNode>>) -> Result<JsValue, JsValue> {
        ...
        let work_in_progress_borrow = work_in_progress_cloned.borrow();
        let _type = work_in_progress_borrow._type.as_ref().unwrap();
        let props = work_in_progress_borrow.pending_props.as_ref().unwrap();
        let component = JsValue::dyn_ref::<Function>(_type).unwrap();
        let children = component.call1(&JsValue::null(), props);
        children
    }
}

由于函数执行是有可能抛出异常的，Rust 中没有 try catch，而是使用 Result<T, E> 这种 enum 来处理异常，其中 T 表示返回值，E 表示抛出的异常。它包括两种变体，Ok(T) 表示正常的返回，Err(E) 表示返回错误：

Since function execution can potentially throw exceptions, Rust doesn’t have a try-catch mechanism. Instead, it uses the Result<T, E> enum to handle exceptions. In this enum, T represents the return value, and E represents the thrown exception. It has two variants: Ok(T) represents a successful return, and Err(E) represents an error return:

enum Result {
  Ok(T),
  Err(E)
}

我们可以通过 match 来处理返回值或抛出的异常，比如下面这个例子：

We can handle the return value or thrown exceptions using match, as shown in the following example:

fn fn1() -> Result<(), String> {
    Err("a".to_string())
}

fn my_fn() {
    match fn1() {
        Ok(return_value) => {
            println!("return: {:?}", return_value)
        }
        Err(e) => {
            println!("error: {:?}", e)
        }
    }
}

fn main() {
    my_fn();
}

还可以使用 ? 操作符来对错误进行传播，比如下面这个例子：

We can also use the ? operator to propagate errors, as shown in the following example:

fn fn1() -> Result<(), String> {
    Err("a".to_string())
}

fn my_fn() -> Result<String, String> {
    fn1()?;
    Ok("my_fn succeed".to_string())
}


fn main() {
    match my_fn() {
        Ok(return_value) => {
            println!("return: {:?}", return_value)
        }
        Err(e) => {
            println!("error: {:?}", e)
        }
    }
}

其中 fn1()?; 等价于：

The expression fn1()?; is equivalent to:

match fn1() {
    Ok(return_value) => {
        return_value
    }
    Err(e) => {
        return Err(e.into())
    }
};

回到我们的代码，component.call1(&JsValue::null(), props) 执行后返回类型为 Result<JsValue, JsValue>，我们需要将抛出的错误传播到 perform_sync_work_on_root 中进行处理：

Returning to our code, after executing component.call1(&JsValue::null(), props), the return type is Result<JsValue, JsValue>. We need to propagate the thrown error to perform_sync_work_on_root for handling:

fn perform_sync_work_on_root(&mut self, root: Rc<RefCell<FiberRootNode>>) {
  ...
  loop {
      match self.work_loop() {
          Ok(_) => {
              break;
          }
          Err(e) => {

              self.work_in_progress = None;
          }
      };
  }
  ...
}

所以，他们之间的函数返回值都需要改成 Result，比如 begin_work 需要改成这样：

Therefore, the return values of the functions between them need to be changed to Result. For example, begin_work needs to be modified as follows:

pub fn begin_work(work_in_progress: Rc<RefCell<FiberNode>>) -> Result<Option<Rc<RefCell<FiberNode>>>, JsValue> {
    let tag = work_in_progress.clone().borrow().tag.clone();
    return match tag {
        WorkTag::FunctionComponent => update_function_component(work_in_progress.clone()),
        WorkTag::HostRoot => Ok(update_host_root(work_in_progress.clone())),
        WorkTag::HostComponent => Ok(update_host_component(work_in_progress.clone())),
        WorkTag::HostText => Ok(None),
    };
}

又比如 perform_unit_of_work 修改了返回值，并使用了 ? 来传播错误：

For example, perform_unit_of_work has been modified to change its return value and uses ? to propagate errors:

fn perform_unit_of_work(&mut self, fiber: Rc<RefCell<FiberNode>>) -> Result<(), JsValue> {
    let next = begin_work(fiber.clone())?;
    ...
}

接着是 complete_work，对于 FunctionComponent，很简单，只需要执行 bubble_properties 即可：

Next is complete_work. For FunctionComponent, it is straightforward. We just need to execute bubble_properties:

...
WorkTag::FunctionComponent => {
    self.bubble_properties(work_in_progress.clone());
    None
}
...

最后到 Commit，无需改动，非常 Nice。

Finally, we reach the Commit phase, which doesn’t require any modifications. It looks great.

接下来，我们来测试一下，下面是 Demo：

Next, let’s test it out. Here’s a demo:

// App.tsx
import dayjs from 'dayjs'

function App() {
  return (
    <div>
      <Comp>{dayjs().format()}</Comp>
    </div>
  )
}

function Comp({children}) {
  return (
    <span>
      <i>{`Hello world, ${children}`}</i>
    </span>
  )
}

export default App

// main.tsx
import {createRoot} from 'react-dom'
import App from './App.tsx'

const root = createRoot(document.getElementById('root'))
root.render(<App />)

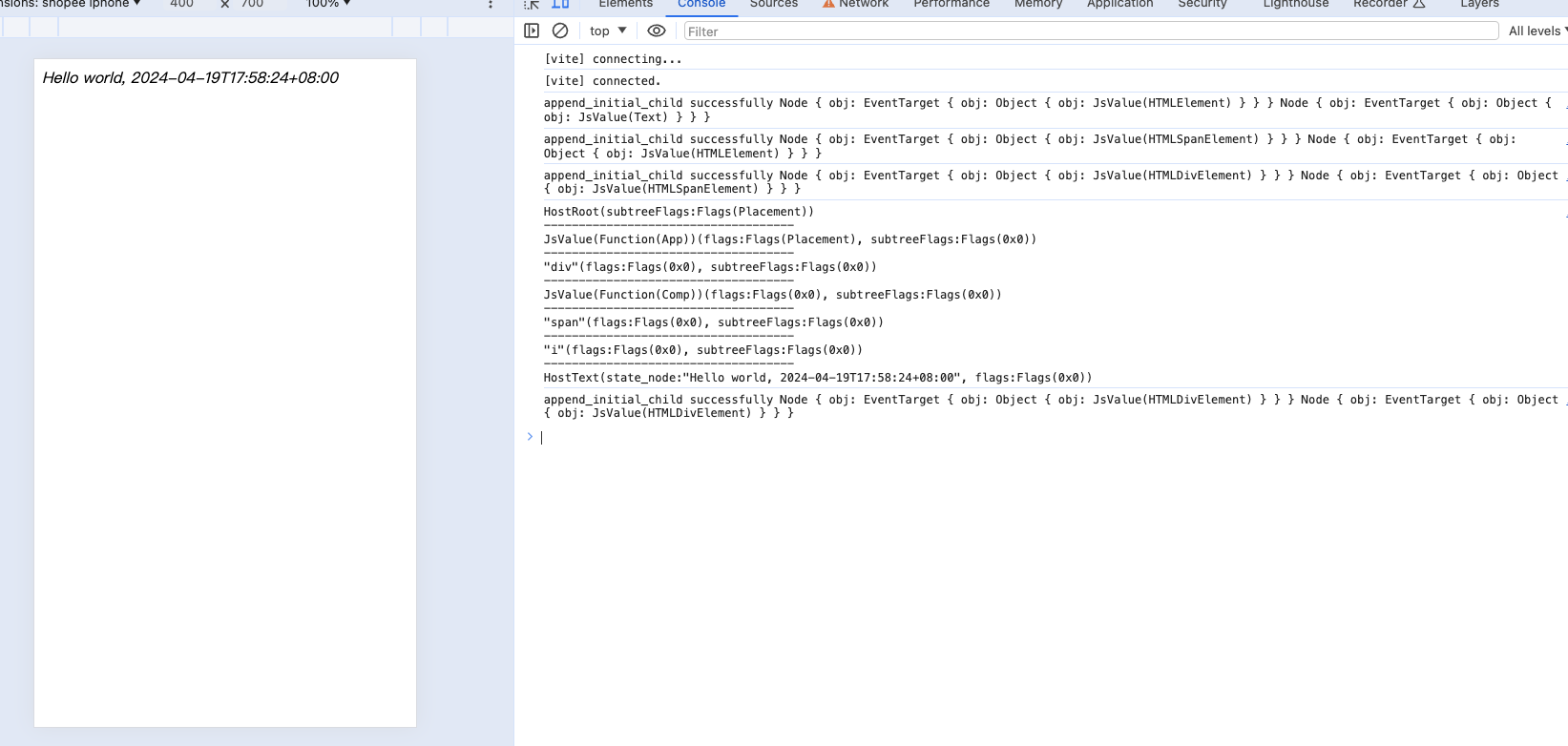

重新构建并安装依赖，运行后可以看到如下效果：

Rebuild and install the dependencies. After running it, you will see the following result:

日志以及页面渲染结果均正常。

The logs and the rendered result on the page are both normal.

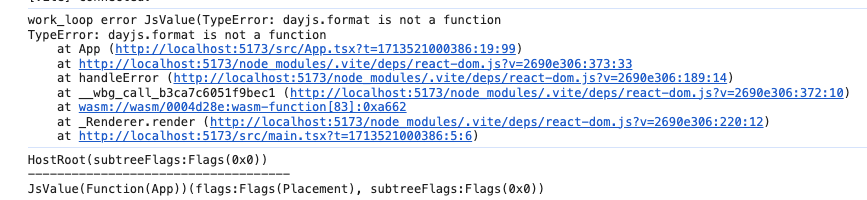

然后，我们再来测试下抛出异常的场景：

Next, let’s test the scenario where an exception is thrown:

function App() {
  return (
    <div>
      {/* will throw error */}
      <Comp>{dayjs.format()}</Comp>
    </div>
  )
}

目前我们还没有对异常进行处理，只是中断了 Render 过程而已。

Currently, we haven’t handled the exceptions，we have only interrupted the render process.

这样，首次渲染对于 FunctionComponent 的支持就完成了，由于目前还未实现 Hooks，所以需要修改的地方并不多。

With this, the initial rendering support for FunctionComponent is complete. Since we haven’t implemented Hooks yet, there aren’t many areas that need modification.
