从零实现 React v18，但 WASM 版 - [10] 实现单节点更新流程

Posted on | In

模仿 big-react，使用 Rust 和 WebAssembly，从零实现 React v18 的核心功能。深入理解 React 源码的同时，还锻炼了 Rust 的技能，简直赢麻了！

代码地址：https://github.com/ParadeTo/big-react-wasm

本文对应 tag：v10

Based on big-react，I am going to implement React v18 core features from scratch using WASM and Rust.

Code Repository：https://github.com/ParadeTo/big-react-wasm

The tag related to this article：v10

上上篇文章末尾说了我们目前还没有完整的实现更新流程，所以这篇文章我们来实现一下。

The previous article mentioned that we haven’t fully implemented the update process yet. So, in this article, we will implement it.

还是用之前的例子：

Let’s continue using the previous example:

1
2
3
4
5
6
7
8
9
10
11
function App() {
  const [name, setName] = useState(() => 'ayou')
  setTimeout(() => {
    setName('ayouayou')
  }, 1000)
  return (
    <div>
      <Comp>{name}</Comp>
    </div>
  )
}

当我们调用 setName('ayouayou') 时，会触发更新流程，而 setName 这个方法是在首次渲染的时候在 mount_state 中返回的，该方法会在当前 FiberNode 的 memoized_state 上挂载一个 Hook 节点，如果有多个 Hooks, 会形成一个链表。Hook 节点上有个 update_queue，显而易见，这是个更新队列。还有个 memoized_state 属性，记录当前 Hook 的状态：

When we call setName('ayouayou'), it triggers the update process. The setName method is returned in the mount_state during the initial render. This method attaches a Hook node to the memoized_state of the current FiberNode. If there are multiple hooks, they form a linked list. The Hook node has an update_queue, which is clearly an update queue. It also has a memoized_state property that records the current state of the Hook.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
fn mount_state(initial_state: &JsValue) -> Result<Vec<JsValue>, JsValue> {
  // Add hook to current FiberNode memoized_state
  let hook = mount_work_in_progress_hook();
  let memoized_state: JsValue;

  if initial_state.is_function() {
    memoized_state = initial_state
        .dyn_ref::<Function>()
        .unwrap()
        .call0(&JsValue::null())?;
  } else {
      memoized_state = initial_state.clone();
  }

  hook.as_ref().unwrap().clone().borrow_mut().memoized_state =
      Some(MemoizedState::JsValue(memoized_state.clone()));
  let queue = create_update_queue();
  hook.as_ref().unwrap().clone().borrow_mut().update_queue = Some(queue.clone());
  ...
}

mount_state 最终会返回 initial_state 和一个函数：

mount_state ultimately returns initial_state and a function:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
let q_rc = Rc::new(queue.clone());
let q_rc_cloned = q_rc.clone();
let fiber = unsafe {
    CURRENTLY_RENDERING_FIBER.clone().unwrap()
};
let closure = Closure::wrap(Box::new(move |action: &JsValue| unsafe {
    dispatch_set_state(
        fiber.clone(),
        (*q_rc_cloned).clone(),
        action,
    )
}) as Box<dyn Fn(&JsValue)>);
let function = closure.as_ref().unchecked_ref::<Function>().clone();
closure.forget();

queue.clone().borrow_mut().dispatch = Some(function.clone());

Ok(vec![memoized_state, function.into()])

这里有点奇怪的是 closure 中的 q_rc_cloned，明明 queue 已经是个 Rc 类型了，为什么还要在外面再包一层 Rc？因为如果把 (*q_rc_cloned).clone() 改成 queue.clone()，会报如下错误：

It’s a bit strange here with q_rc_cloned in the closure. queue is already of type Rc, so why is there an additional layer of Rc on the outside? This is because if we change (*q_rc_cloned).clone() to queue.clone(), it will result in the following error:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
error[E0382]: borrow of moved value: `queue`
   --> packages/react-reconciler/src/fiber_hooks.rs:251:5
    |
233 |     let queue = create_update_queue();
    |         ----- move occurs because `queue` has type `Rc<RefCell<UpdateQueue>>`, which does not implement the `Copy` trait
...
240 |     let closure = Closure::wrap(Box::new(move |action: &JsValue| unsafe {
    |                                          ----------------------- value moved into closure here
...
243 |             queue.clone(),
    |             ----- variable moved due to use in closure
...
251 |     queue.clone().borrow_mut().dispatch = Some(function.clone());
    |     ^^^^^ value borrowed here after move

原因在于 queue 的值的所有权已经被 move 进闭包中了，外面不能再继续使用了。那去掉 move 行么？试试看，结果发现会报这个错误：

The reason is that the ownership of the value of queue has already been moved into the closure, so it can no longer be used outside. Can we remove the move? Let’s try, and we find that it results in this error:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
error[E0597]: `queue` does not live long enough
   --> packages/react-reconciler/src/fiber_hooks.rs:243:13
    |
240 |       let closure = Closure::wrap(Box::new(|action: &JsValue| unsafe {
    |                                   -        ------------------ value captured here
    |  _________________________________|
    | |
241 | |         dispatch_set_state(
242 | |             fiber.clone(),
243 | |             queue.clone(),
    | |             ^^^^^ borrowed value does not live long enough
...   |
246 | |         )
247 | |     }) as Box<dyn Fn(&JsValue)>);
    | |______- cast requires that `queue` is borrowed for `'static`
...
254 |   }
    |   - `queue` dropped here while still borrowed

原因在于，如果不 move 进去，queue 在 mount_state 执行完后就会被回收，而闭包里面却仍然在借用，显然不行。

The reason is that if we don’t move it in, queue will be deallocated after mount_state is executed, but it is still borrowed inside the closure, which is obviously not allowed.

都说 Rust 学习曲线陡峭的原因就在此，大部分时候都在和编译器作斗争。不过 Rust 的理念就是这样，在程序编译时就把大部分的问题给发现出来，这样修复的效率比上线后发现再修复的效率要高得多。而且，Rust 编译器也很智能，给出的问题描述一般都很清晰。

It is often said that the steep learning curve of Rust lies in the fact that you are constantly fighting with the compiler. However, this is the philosophy of Rust: to discover most issues during compilation, which leads to a much higher efficiency in fixing them compared to discovering and fixing them after deployment. Moreover, the Rust compiler is quite intelligent and provides clear problem descriptions.

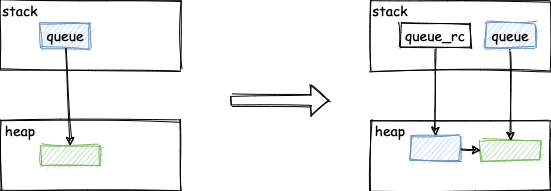

继续回到使用 move 和 queue 的错误。分析一下，因为 queue 被 move 了，所以后面不能使用 queue，那么如果我们 move 一个别的值不就可以了么，所以就有了 queue_rc，两者的内存模型对比如下所示：

Let’s get back to the error of using move and queue. Analyzing the situation, since queue has been moved, we can’t use queue afterwards. So, if we move some other value, wouldn’t that work? That’s why we have queue_rc, and the memory models of the two are compared as shown below:

还有一个值得说明的地方是，我们把这个闭包函数挂载到了每个 Hook 节点的 queue 的 dispatch 属性上：

Another point worth mentioning is that we attach this closure function to the dispatch property of the queue of each Hook node:

1
queue.clone().borrow_mut().dispatch = Some(function.clone());

是为了在 update_state 时返回同样的函数：

This is done to return the same function during update_state:

1
2
3
4
5
6
7
8
9
10
11
12
13
fn update_state(initial_state: &JsValue) -> Result<Vec<JsValue>, JsValue> {
   ...
    Ok(vec![
        hook.clone().unwrap().clone()
            .borrow()
            .memoized_state
            .clone()
            .unwrap()
            .js_value()
            .unwrap().clone(),
        queue.clone().unwrap().borrow().dispatch.clone().into(),
    ])
}

不过我感觉这个 dispatch 作为 Hook 的属性更合适，至少目前来看它跟 queue 好像没什么关联。

However, I feel that having dispatch as an attribute of Hook is more appropriate. At least for now, it doesn’t seem to have any direct association with queue.

回到代码，当调用 dispatch 时，最后会调用 dispatch_set_state：

Returning to the code, when dispatch is called, it eventually invokes dispatch_set_state:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
fn dispatch_set_state(
    fiber: Rc<RefCell<FiberNode>>,
    update_queue: Rc<RefCell<UpdateQueue>>,
    action: &JsValue,
) {
    let update = create_update(action.clone());
    enqueue_update(update_queue.clone(), update);
    unsafe {
        WORK_LOOP
            .as_ref()
            .unwrap()
            .clone()
            .borrow()
            .schedule_update_on_fiber(fiber.clone());
    }
}

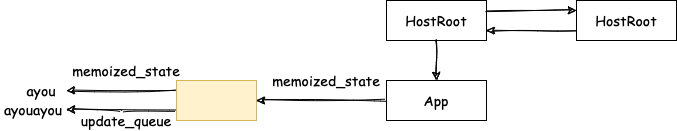

它的作用就是使用传入的 action 更新 Hook 节点的 update_queue，并开启一轮新的更新流程，此时 App 节点状态如下图所示：

Its purpose is to update the update_queue of the Hook node with the provided action and initiate a new round of update process. At this point, the state of the App node looks as shown in the following diagram:

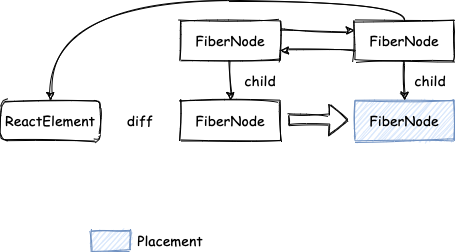

接下来流程跟首次渲染类似，首先看 begin work，更新过程的 begin work 主要是对于 FiberNode 的子节点的处理，它通过当前 Fiber Tree 中的子 FiberNode 节点和新产生的 ReactElement （代码中叫做 children）来生成新的子 FiberNode，也就是我们常说的 diff 过程：

Next, the process is similar to the initial rendering. First, let’s look at the “begin work” phase. During the update process, the “begin work” phase primarily handles the child nodes of the FiberNode. It generates new child FiberNode by comparing the existing child FiberNode in the Fiber Tree with the newly generated ReactElement (referred to as children in the code). This is commonly known as the diffing process:

其中，不同类型的 FiberNode 节点产生 children 的方式有所不同：

  • HostRoot：从 memoized_state 取值
  • HostComponent：从 pending_props 中取值
  • FunctionComponent：通过执行 type 指向的 Function 来得到
  • HostText：没有这个过程，略

The way children are generated differs based on the type of FiberNode:

  • HostRoot: Values are taken from memoized_state.
  • HostComponent: Values are taken from pending_props.
  • FunctionComponent: Obtained by executing the Function pointed to by the type.
  • HostText: This process is not applicable and can be ignored.

而如何产生这个新的子 FiberNode，也有两种情况：

There are two scenarios for generating these new child FiberNode:

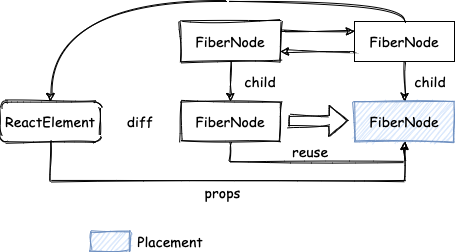

  • Diff 的 ReactElement 和 FiberNode 的 key 和 type 都一样。复用 FiberNode，使用 ReactElement 上的 props 来更新 FiberNode 中的 pending_props：
  • When the key and type of the diffing ReactElement and FiberNode are the same. The FiberNode is reused, and the pending_props of the FiberNode are updated with the props from the ReactElement:

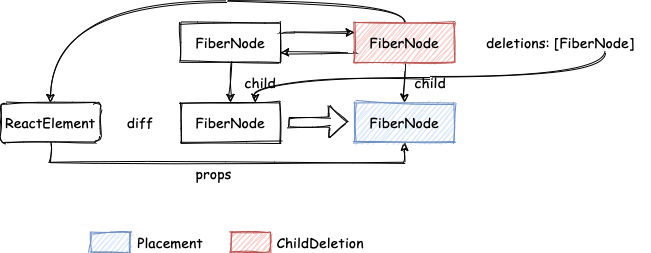

  • 其他情况。创建新的 FiberNode，并在父节点打上 ChildDeletion 标记，同时把旧的 FiberNode 添加到 deletions 列表中：
  • In other cases, a new FiberNode is created, and the parent node is marked with the ChildDeletion flag. The old FiberNode is added to the deletions list:

代码就不贴了，可以查看本次改动的 child_fiber 文件。

I won’t provide the code here, but you can refer to the child_fiber file in this commit.

由于 FunctionComponent 产生 children 的方式相对复杂一点，我们再回过头来看看 render_with_hooks 方法，主要改动点为：

Since generating children for FunctionComponent is a bit more complex, let’s go back and look at the changes made in the render_with_hooks method. The main changes are:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
pub fn render_with_hooks(work_in_progress: Rc<RefCell<FiberNode>>) -> Result<JsValue, JsValue> {
  ...
  if current.is_some() {
      // log!("还未实现update时renderWithHooks");
      update_hooks_to_dispatcher(true);
  } else {
      update_hooks_to_dispatcher(false);
  }
  ...
}

fn update_hooks_to_dispatcher(is_update: bool) {
    let object = Object::new();

    let closure = Closure::wrap(Box::new(if is_update { update_state } else { mount_state })
        as Box<dyn Fn(&JsValue) -> Result<Vec<JsValue>, JsValue>>);
    let function = closure.as_ref().unchecked_ref::<Function>().clone();
    closure.forget();
    Reflect::set(&object, &"use_state".into(), &function).expect("TODO: panic set use_state");

    updateDispatcher(&object.into());
}

也就是在更新的时候把 dispatcher 里的 use_state 更新为 update_state 方法，而 update_state 中主要是根据 Hooks 上的 update_queue 和 memoized_state 计算出新的 memoized_state 进行返回，同时还返回了 dispatch 函数：

During the update, the use_state in the dispatcher is replaced with the update_state method. The update_state method primarily calculates the new memoized_state based on the update_queue and memoized_state of the Hooks and returns it. It also returns the dispatch function.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
fn update_state(initial_state: &JsValue) -> Result<Vec<JsValue>, JsValue> {
    let hook = update_work_in_progress_hook();

    let hook_cloned = hook.clone().unwrap().clone();
    let queue = hook_cloned.borrow().update_queue.clone();
    let base_state = hook_cloned.borrow().memoized_state.clone();

    unsafe {
        hook_cloned.borrow_mut().memoized_state = process_update_queue(
            base_state,
            queue.clone(),
            CURRENTLY_RENDERING_FIBER.clone().unwrap(),
        );
    }

    Ok(vec![
        hook.clone().unwrap().clone()
            .borrow()
            .memoized_state
            .clone()
            .unwrap()
            .js_value()
            .unwrap().clone(),
        queue.clone().unwrap().borrow().dispatch.clone().into(),
    ])
}

begin work 阶段就说这么多，接下来看看 complete work 阶段，complete work 阶段相对来说简单一点，主要是对节点进行 Update 标记，修改了处理 HostText 和 HostComponent 的逻辑：

That’s all for the “begin work” phase. Next, let’s take a look at the “complete work” phase, which is relatively simpler. In this phase, nodes are marked with the Update flag, and the logic for handling HostText and HostComponent is modified.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
WorkTag::HostText => {
  if current.is_some() && work_in_progress_cloned.borrow().state_node.is_some() {
      // reuse FiberNode
      let old_text = derive_from_js_value(&current.clone().unwrap().clone().borrow().memoized_props, "content");
      let new_test = derive_from_js_value(&new_props, "content");
      if !Object::is(&old_text, &new_test) {
          CompleteWork::mark_update(work_in_progress.clone());
      }
  } else {
      let text_instance = self.host_config.create_text_instance(
          Reflect::get(&new_props, &JsValue::from_str("content"))
              .unwrap()
              .as_string()
              .unwrap(),
      );
      work_in_progress.clone().borrow_mut().state_node =
          Some(Rc::new(StateNode::Element(text_instance.clone())));
  }

  self.bubble_properties(work_in_progress.clone());
  None
}，
WorkTag::HostComponent => {
  if current.is_some() && work_in_progress_cloned.borrow().state_node.is_some() {
    // reuse FiberNode
    log!("TODO: update properties")
  } else {
      let instance = self.host_config.create_instance(
          work_in_progress
              .clone()
              .borrow()
              ._type
              .as_ref()
              .as_string()
              .unwrap(),
      );
      self.append_all_children(instance.clone(), work_in_progress.clone());
      work_in_progress.clone().borrow_mut().state_node =
          Some(Rc::new(StateNode::Element(instance.clone())));
  }

  self.bubble_properties(work_in_progress.clone());
  None
}

最后是 commit 阶段，主要就是在 commit_mutation_effects_on_fiber 中增加对 Update 和 ChildDeletion 的处理：

Finally, we have the “commit” phase, which mainly involves adding handling for Update and ChildDeletion in the commit_mutation_effects_on_fiber function.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
fn commit_mutation_effects_on_fiber(&self, finished_work: Rc<RefCell<FiberNode>>) {
  ...
  if flags.contains(Flags::ChildDeletion) {
      let deletions = finished_work.clone().borrow().deletions.clone();
      if deletions.is_some() {
          let deletions = deletions.unwrap();
          for child_to_delete in deletions {
              self.commit_deletion(child_to_delete);
          }
      }
      finished_work.clone().borrow_mut().flags -= Flags::ChildDeletion;
  }

  if flags.contains(Flags::Update) {
      self.commit_update(finished_work.clone());
      finished_work.clone().borrow_mut().flags -= Flags::Update;
  }
  ...

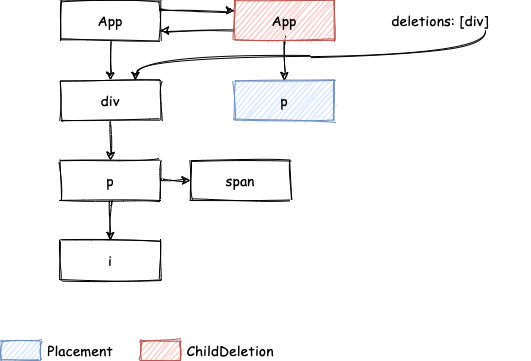

Update 中目前只处理了 HostText，比较简单，就不介绍了，直接看代码吧，这里重点介绍下 ChildDeletion。

In the Update part, only HostText is currently handled, which is relatively simple, so we won’t go into detail. Let’s directly look at the code. Here, I’ll focus on explaining ChildDeletion.

begin work 中我们说过标记为删除的子节点会被加入父节点的 deletions 列表中，所以这里会遍历这个列表，然后调用 commit_deletion，该函数会采取前序的方式遍历（优先遍历根节点） child_to_delete 为根节点的子树，并执行这些节点上相关的副作用，如：执行 componentWillUnmount 方法或 useEffect 返回的 destroy 方法，从这里也可以发现父组件的副作用会先执行。

In the “begin work” phase, we mentioned that child nodes marked for deletion are added to the deletions list of their parent node. So here, we iterate over this list and call commit_deletion. This function traverses the subtree rooted at child_to_delete in a pre-order manner (prioritizing the traversal of the root node). It executes the relevant side effects on these nodes, such as invoking the componentWillUnmount method or the destroy method returned by useEffect. From this, we can observe that the side effects of the parent component are executed first.

比如下面这个例子：

For example, consider the following example:

的遍历顺序为 div->p->i->span。同时还会记录第一个遍历到的节点，此例为 div，然后在该节点上执行删除操作。

The traversal order is div -> p -> i -> span. Additionally, the first node encountered during traversal is recorded, which in this case is div. The deletion operation is then performed on this node.

好了，单节点更新流程就实现完毕了，简单总结下就是：

Alright, the single-node update process is now complete. In summary:

  • 在 begin work 阶段中标记子节点的删除、插入
  • complete work 阶段中标记节点的更新

  • commit 流程中深度优先遍历 Fiber Tree，处理有标记的节点。对于标记为 ChildDeletion 的节点，会采用前序遍历的方式遍历以此节点为根节点的子树。

  • In the “begin work” phase, mark child nodes for deletion or insertion.

  • In the “complete work” phase, mark nodes for update.
  • In the commit phase, perform a depth-first traversal of the Fiber Tree, processing the marked nodes. For nodes marked as ChildDeletion, a pre-order traversal is performed on the subtree rooted at that node.

更多详见本次更新。

For more details, please refer to this update.
